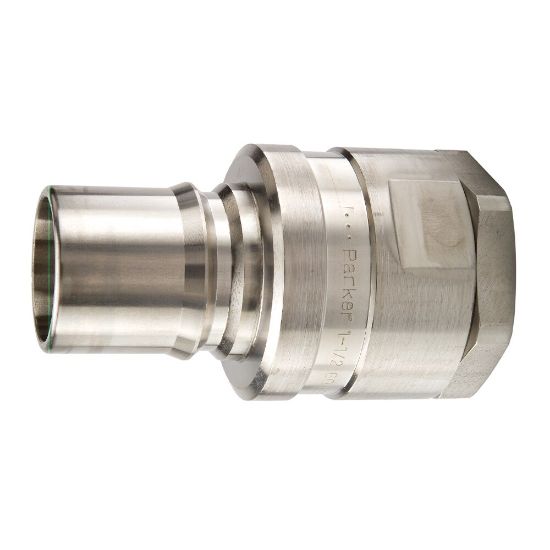

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SSH12-63NY

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: SSH12-63NY

$2,007.24

Products specifications

Attribute name	Attribute value
Valve Material	Stainless Steel 316	Vacuum Pressure Rating	n/a
Flow Rate	378 L/min	Hex Size	2.50 inch
Valve Type	Poppet	Product Type	Manual Connect
Plating Type	n/a	Maximum Operating Temperature	204 °C
Minimum Operating Temperature	-15 °F	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division
Connection Type	Female NPTF	Body Size (inch)	1 1/2
Coupling Half	Male Nipple	Application	General Purpose
Maximum Operating Pressure	1500	Seal Material	Fluorocarbon
Body Material	316 Stainless Steel	Connection Thread Size (inch)	1 1/2 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
