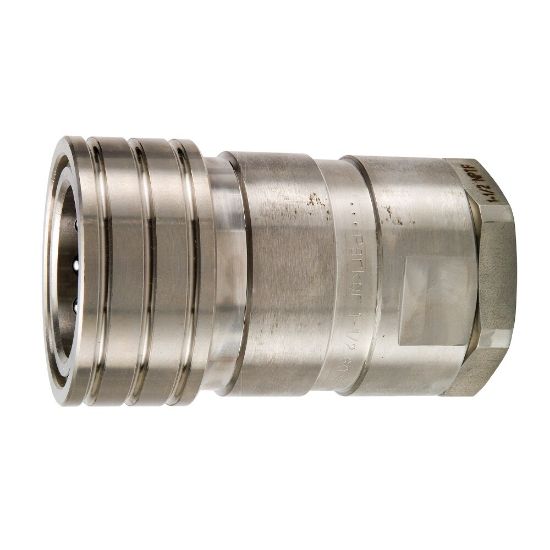

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SSH12-62NY

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: SSH12-62NY

$3,129.70

Products specifications

Attribute name	Attribute value
Flow Rate	378 L/min	Hex Size	2.50 inch
Vacuum Pressure Rating	n/a	Minimum Operating Temperature	-26 °C
Product Type	Manual Connect	Valve Type	Poppet
Plating Type	n/a	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Specifications Met	ISO 7241-1 Series B
Valve Material	Stainless Steel 316	Ball Material	Stainless Steel
Application	General Purpose	Body Size (inch)	1 1/2
Maximum Operating Pressure	1500	Seal Material	Fluorocarbon
Body Material	316 Stainless Steel	Coupling Half	Female Coupler
Connection Thread Size (inch)	1-1/2 - 11 1/2	Connection Type	Female NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
