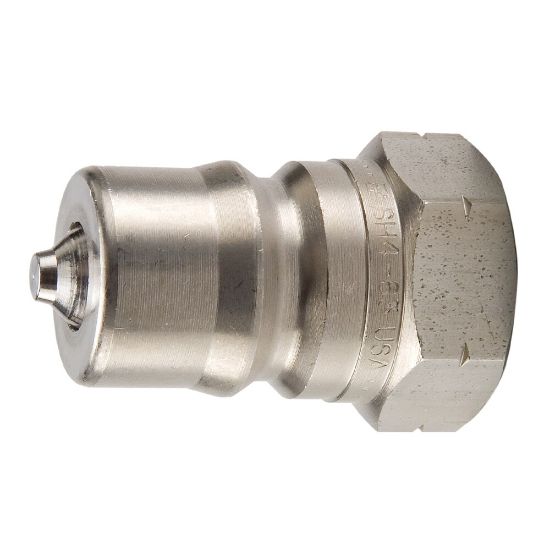

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH6-63W-T12

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: SH6-63W-T12

$211.84

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 7241-1, series B	Valve Material	303 Stainless steel
Minimum Operating Temperature	-54 °C	Valve Type	Poppet
Product Type	Manual Connect	Maximum Operating Temperature	400 °F
Hex Size	1.34 inch	Division	Quick Coupling Division
Flow Rate	28 Gal/min	Plating Type	na
Vacuum Pressure Rating	-0.9 bar
Body Size (inch)	3/4	Application	General Purpose
Maximum Operating Pressure	3000	Coupling Half	Male Nipple
Body Material	303 Stainless Steel	Connection Thread Size (inch)	1 1/16 - 12
Connection Type	Female ORB	Seal Material	Ethylene Propylene

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
