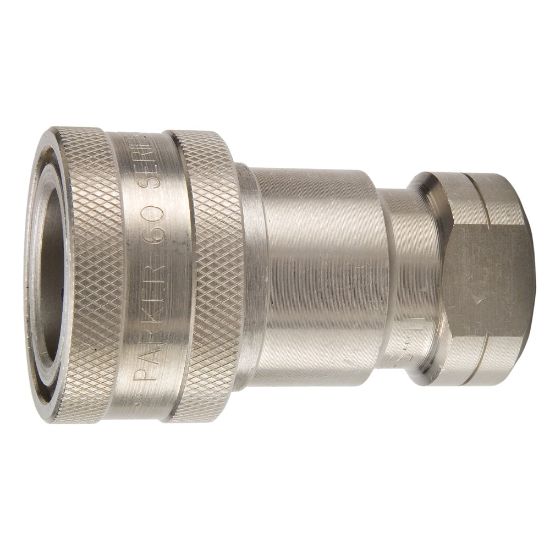

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH3-62-T8

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	12 in stock

SKU: SH3-62-T8

$225.56

Products specifications

Attribute name	Attribute value
Ball Material	Stainless Steel	Maximum Operating Temperature	121 °C
Product Type	Manual Connect	Vacuum Pressure Rating	27.4 Inch-Hg
Valve Type	Poppet	Minimum Operating Temperature	-40 °C
Dimensional Weight	0.05341726618705036 lb	Plating Type	n/a
Hex Size	1 inch	Specifications Met	ISO 7241-1 Series B
Valve Material	Stainless Steel 303	Division	Quick Coupling Division
Flow Rate	23 L/min
Seal Material	Nitrile	Body Size (inch)	3/8
Connection Thread Size (inch)	3/4 - 16	Application	General Purpose
Body Material	303 Stainless Steel	Connection Type	Female ORB
Maximum Operating Pressure	5000	Coupling Half	Female Coupler
