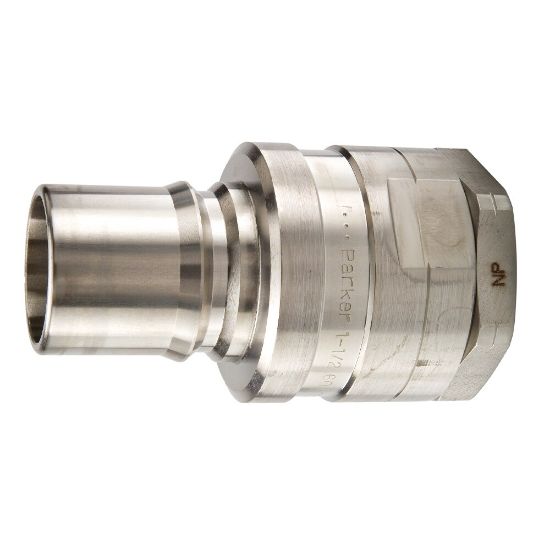

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH12-63L

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: SH12-63L

$846.40

Products specifications

Attribute name	Attribute value
Flow Rate	378 L/min	Hex Size	2.50 inch
Vacuum Pressure Rating	n/a	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Product Type	Manual Connect
Plating Type	n/a	Minimum Operating Temperature	-40 °F
Valve Material	Stainless Steel 303	Division	Quick Coupling Division
Specifications Met	ISO 7241-1 Series B
Connection Thread Size (inch)	1 1/4 - 11 1/2	Connection Type	Female NPTF
Body Size (inch)	1 1/2	Coupling Half	Male Nipple
Seal Material	Nitrile	Body Material	303 Stainless Steel
Application	General Purpose	Maximum Operating Pressure	1500

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
