*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

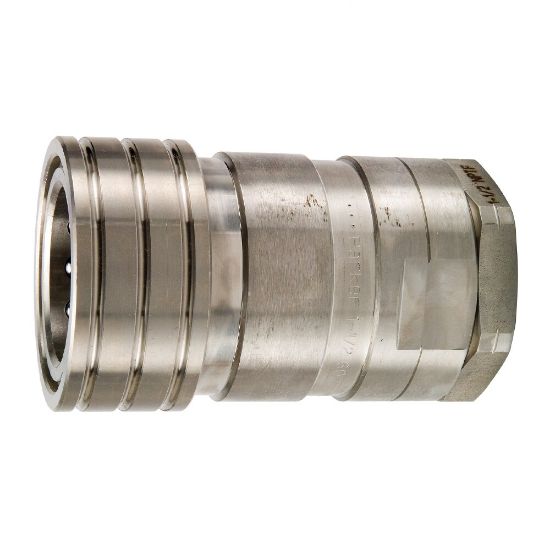

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH12-62N

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	1 in stock
Partner Available:	Backordered

SKU: SH12-62N

$1,267.92

Products specifications

Attribute name	Attribute value
Hex Size	2.50 inch	Maximum Operating Temperature	250 °F
Vacuum Pressure Rating	n/a	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Product Type	Manual Connect
Plating Type	n/a	Division	Quick Coupling Division
Specifications Met	ISO 7241-1 Series B	Flow Rate	100 Gal/min
Valve Material	Stainless Steel 303	Ball Material	Stainless Steel
Application	General Purpose	Body Size (inch)	1 1/2
Seal Material	Nitrile	Body Material	303 Stainless Steel
Maximum Operating Pressure	1500	Coupling Half	Female Coupler
Connection Thread Size (inch)	1-1/2 - 11 1/2	Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
