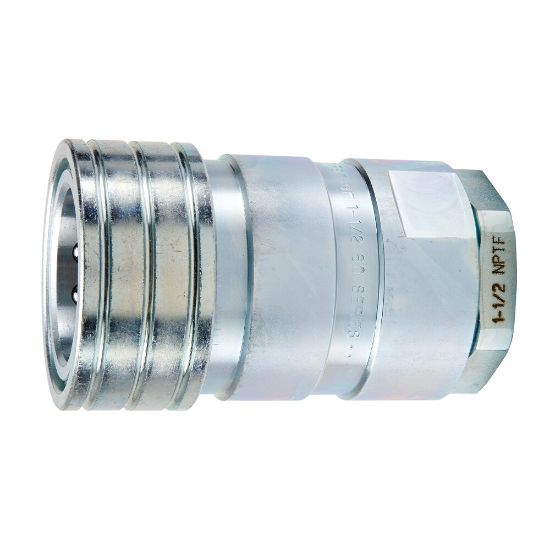

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H2020-62

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: H2020-62

$1,582.23

Products specifications

Attribute name	Attribute value
Vacuum Pressure Rating	n/a	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Material	Steel
Valve Type	Poppet	Minimum Operating Temperature	-40 °C
Plating Type	Zinc with clear trivalent chromate	Flow Rate	757 L/min
Ball Material	Steel	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Hex Size	3.75 inch
Connection Thread Size (inch)	2-1/2 - 8	Body Size (inch)	2 1/2
Seal Material	Nitrile	Application	General Purpose
Body Material	Steel	Maximum Operating Pressure	1500
Coupling Half	Female Coupler	Connection Type	Female NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
