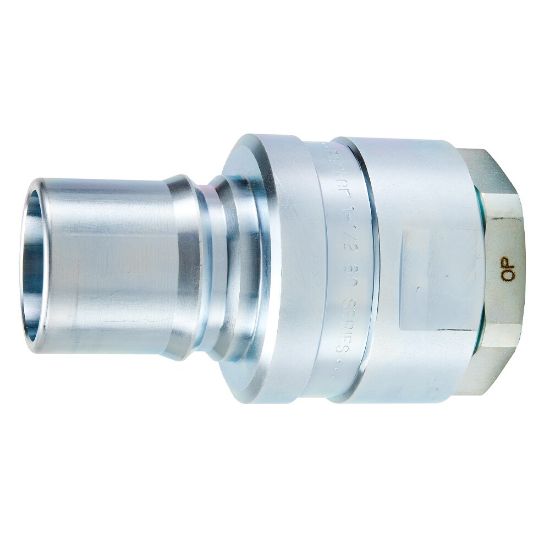

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H2016-63-BSPP

Name: Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H2016-63-BSPP
SKU: H2016-63-BSPP
Availability: OutOfStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: H2016-63-BSPP

Qty:

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Hex Size	3.75 inch
Vacuum Pressure Rating	n/a	Maximum Operating Temperature	121 °C
Valve Type	Poppet	Product Type	Manual Connect
Flow Rate	757 L/min	Valve Material	Steel
Minimum Operating Temperature	-40 °F
Connection Thread Size (inch)	2 - 11 1/2	Body Size (inch)	2 1/2
Seal Material	Nitrile	Connection Type	Female BSPP
Coupling Half	Male Nipple	Application	General Purpose
Body Material	Steel	Maximum Operating Pressure	1500
