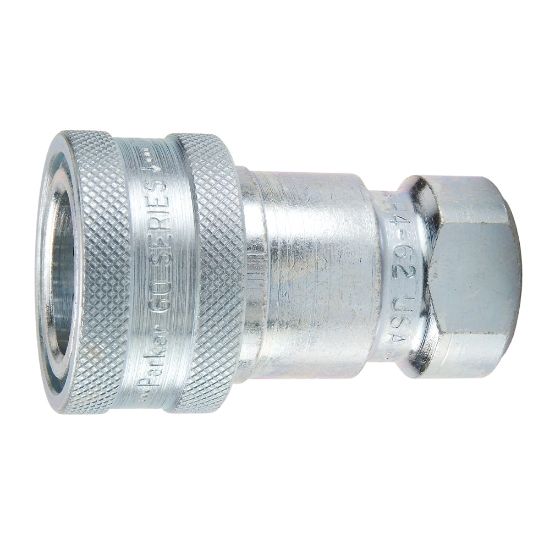

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H2-62

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	124 in stock
Partner Available:	1243 in stock

SKU: H2-62

$29.83

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.03998800959232614 lb	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Hex Size	0.81 inch
Vacuum Pressure Rating	27.4 Inch-Hg	Minimum Operating Temperature	-40 °C
Valve Material	Steel	Ball Material	Steel
Valve Type	Poppet	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Specifications Met	ISO 7241-1 Series B
Flow Rate	11 L/min
Connection Thread Size (inch)	1/4 - 18	Seal Material	Nitrile
Application	General Purpose	Body Material	Steel
Maximum Operating Pressure	5000	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size (inch)	1/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
