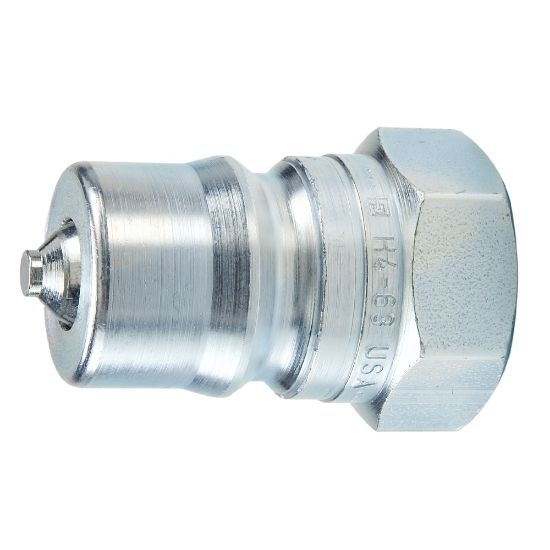

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H1-63Y

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: H1-63Y

$19.57

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-15 °F	Division	Quick Coupling Division
Flow Rate	0.8 Gal/min	Hex Size	0.56 inch
Vacuum Pressure Rating	-0.9 bar	Specifications Met	ISO 7241-1, series B
Maximum Operating Temperature	204 °C	Product Type	Manual Connect
Valve Material	Steel	Valve Type	Poppet
Plating Type	Zinc with clear trivalent chromate
Seal Material	Fluorocarbon	Maximum Operating Pressure	5000
Connection Thread Size (inch)	1/8 - 27	Connection Type	Female NPTF
Application	General Purpose	Coupling Half	Male Nipple
Body Size (inch)	1/8	Body Material	Steel
