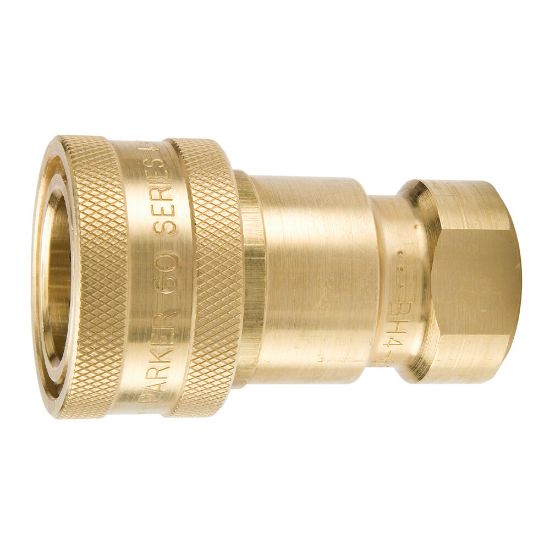

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - BH6-60-STM

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	6 in stock

SKU: BH6-60-STM

$186.40

Products specifications

Attribute name	Attribute value
Product Type	Manual Connect	Valve Material	Brass
Valve Type	Poppet	Minimum Operating Temperature	-54 °C
Maximum Operating Temperature	204 °C	Plating Type	na
Vacuum Pressure Rating	-0.9 bar	Division	Quick Coupling Division
Hex Size	1.31 inch	Ball Material	Stainless Steel
Specifications Met	ISO 7241-1, series B	Flow Rate	106 L/min
Body Material	BRASS	Maximum Operating Pressure	2200
Connection Thread Size (inch)	3/4 - 14	Application	Steam
Seal Material	Ethylene Propylene	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size (inch)	3/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
