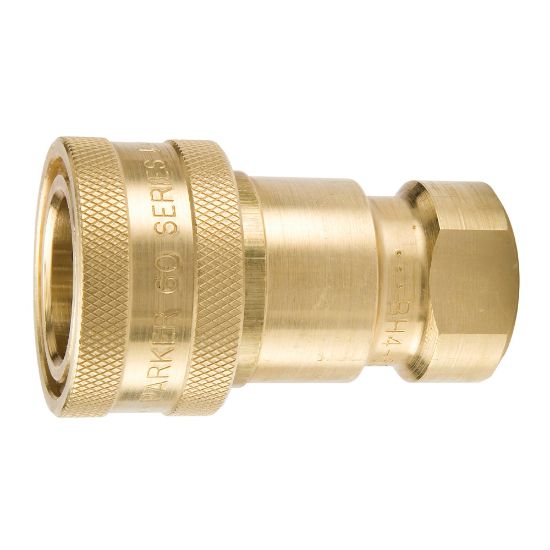

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - BH1-60Y-4FP

Name: Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - BH1-60Y-4FP
SKU: BH1-60Y-4FP
Availability: OutOfStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: BH1-60Y-4FP

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	204 °C
Product Type	Manual Connect	Minimum Operating Temperature	-15 °F
Valve Type	Poppet	Plating Type	na
Flow Rate	0.8 Gal/min	Hex Size	0.68 inch
Ball Material	Stainless Steel	Valve Material	Brass
Specifications Met	ISO 7241-1, series B	Vacuum Pressure Rating	-0.9 bar
Body Material	BRASS	Connection Thread Size (inch)	1/4 - 18
Seal Material	Fluorocarbon	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size (inch)	1/8
Maximum Operating Pressure	3000	Application	General Purpose

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
