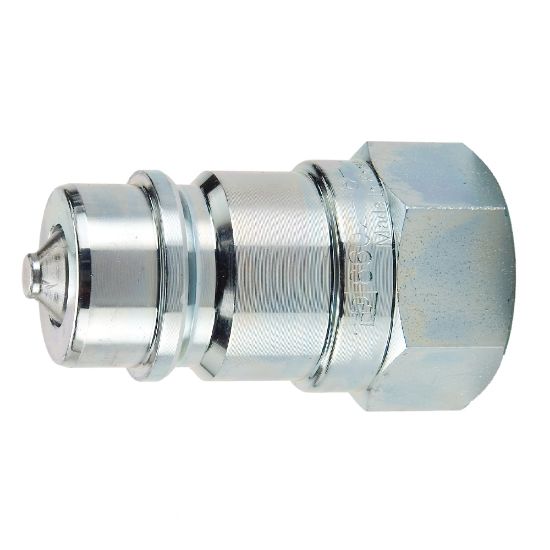

Multi-Purpose Hydraulic Quick Couplings, ISO 7241 series A Interchange - 6600 Series - 6602-16-16

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	75 in stock
Partner Available:	476 in stock

SKU: 6602-16-16

$46.86

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seal Material	Nitrile	Division	Quick Coupling Division
Hex Size	1.62 inch	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Plating Type	Zinc with clear trivalent chromate
Application	Hydraulics	Valve Type	Poppet
Flow Rate	50 Gal/min	Maximum Operating Pressure	4000 psi
Interchange Type	ISO 7241-1 Series A	Dimensional Weight	0.11996402877697843 lb
Specifications Met	ISO 7241-1 Series A
Coupling Half	Male Nipple	Body Size (inch)	1
Connection Type	Female NPTF	Connection Thread Size (inch)	1 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
