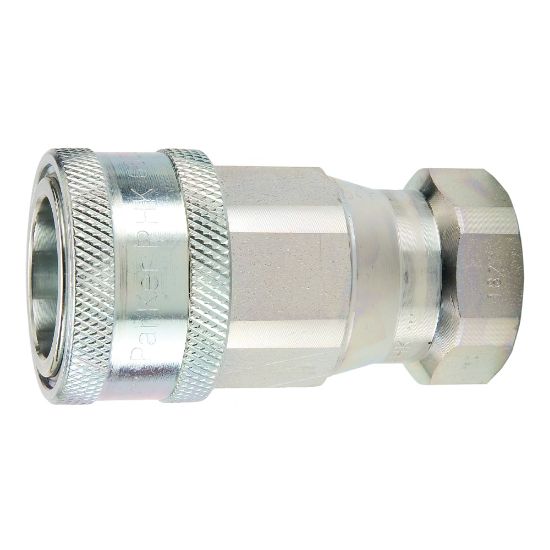

Multi-Purpose Hydraulic Quick Couplings, ISO 7241 series A Interchange - 6600 Series - 6601-2-4

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	32 in stock

SKU: 6601-2-4

$47.55

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Maximum Operating Pressure	5000 psi	Valve Type	Poppet
Hex Size	0.88 inch	Dimensional Weight	0.02670863309352518 lb
Flow Rate	3 Gal/min	Interchange Type	ISO 7241-1 Series A
Specifications Met	ISO 7241-1 Series A
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Female Coupler
Connection Type	Female NPTF	Body Size (inch)	1/4"

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
