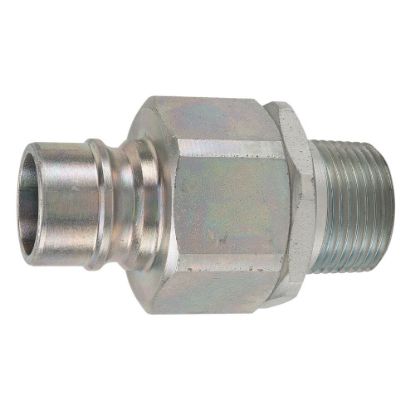

Multi-Purpose Hydraulic Quick Couplings - H Series - VHN8-8F

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	6 in stock
Partner Available:	119 in stock

SKU: VHN8-8F

$25.08

Products specifications

Attribute name	Attribute value
Hex Size	1.19 inch	Seal Material	Nitrile
Dimensional Weight	0.03998800959232614 lb	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Application	Hydraulics
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Connection Type	Female NPTF	Body Size (inch)	1/2
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/2 - 14
Maximum Operating Pressure	4000	Body Material	Steel
Valve Type	Poppet
