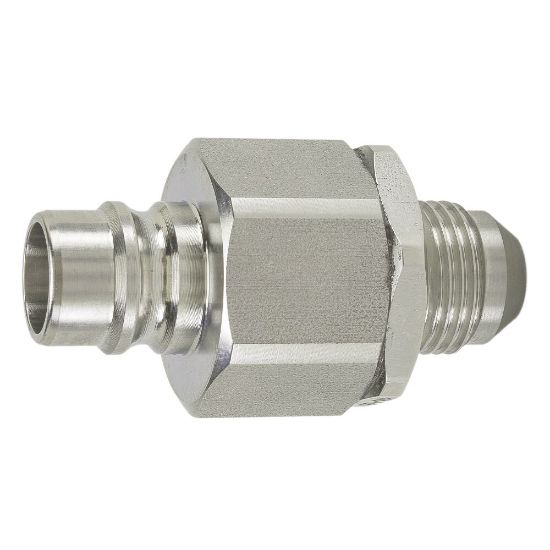

Multi-Purpose Hydraulic Quick Couplings - H Series - VHN8-8EM

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered
Partner Available:	Backordered

SKU: VHN8-8EM

$37.82

Products specifications

Attribute name	Attribute value
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Hex Size	1.19 inch	Seal Material	Nitrile
Application	Hydraulic, General Purpose	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Type	Poppet
Minimum Operating Temperature	-40 °F
Body Material	Steel	Valve Type	Poppet
Body Size (inch)	1/2	Connection Type	Male SAE 37 degree flare
Connection Thread Size (inch)	3/4 - 16	Coupling Half	Male Nipple
Maximum Operating Pressure	4000

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
