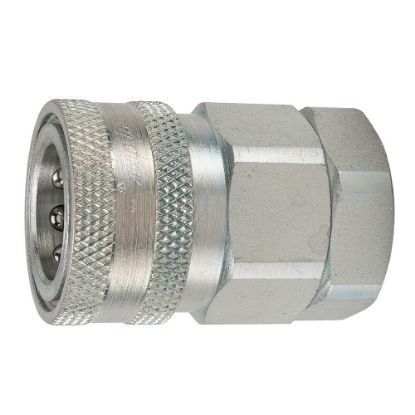

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Multi-Purpose Hydraulic Quick Couplings - H Series - VHN12-12F

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	7 in stock
Partner Available:	101 in stock

SKU: VHN12-12F

$37.05

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Division	Quick Coupling Division	Hex Size	1.50 inch
Dimensional Weight	0.07997601918465227 lb	Seal Material	Nitrile
Body Size (inch)	3/4	Maximum Operating Pressure	3500
Coupling Half	Male Nipple	Connection Thread Size (inch)	3/4 - 14
Body Material	Steel	Valve Type	Poppet
Connection Type	Female NPTF

Customers who bought this item also bought

Connect Under Pressure, Multi-Purpose Quick Couplings - PH Series - VPHC12-12F

Parker's general purpose connect under pressure quick couplers and nipples are versatile for use across a spectrum of applications where fluid lines require fast and easy connection and disconnection while under residual pressure

$86.95
