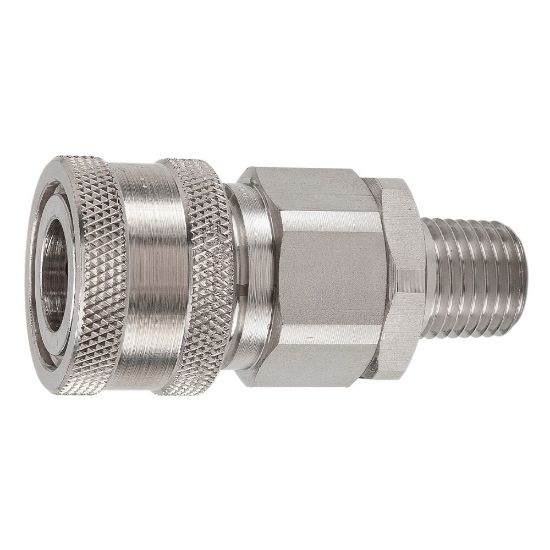

Multi-Purpose Hydraulic Quick Couplings - H Series - SVHC6-6M

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered
Partner Available:	Backordered

SKU: SVHC6-6M

$164.17

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.05460431654676258 lb	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Plating Type	n/a	Division	Quick Coupling Division
Hex Size	1 inch	Seal Material	Nitrile
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Maximum Operating Pressure	4000	Coupling Half	Female Coupler
Body Material	316 Stainless Steel	Valve Type	Poppet
Connection Type	Male NPT

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
