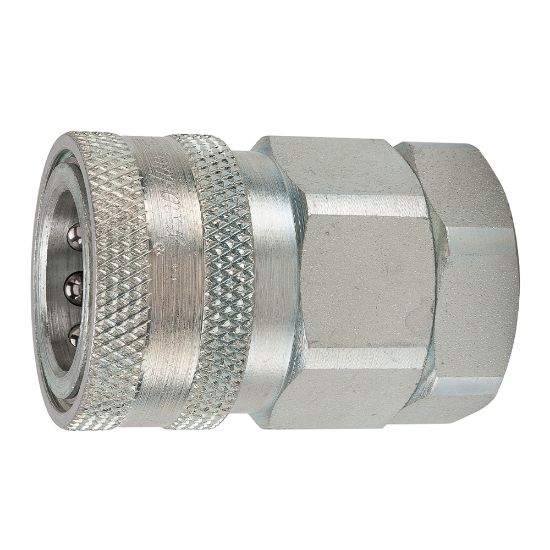

Multi-Purpose Hydraulic Quick Couplings - H Series - PHC12-12RP

Name: Multi-Purpose Hydraulic Quick Couplings - H Series - PHC12-12RP
SKU: PHC12-12RP
Availability: OutOfStock

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:

Backordered

SKU: PHC12-12RP

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Valve Type	Unvalved
Application	Hydraulic, General Purpose	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Division	Quick Coupling Division
Hex Size	1.50 inch
Connection Thread Size (inch)	3/4 - 14	Body Material	Steel
Maximum Operating Pressure	3500	Connection Type	Female BSPP
Body Size (inch)	3/4	Valve Type	Unvalved
Coupling Half	Female Coupler

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
