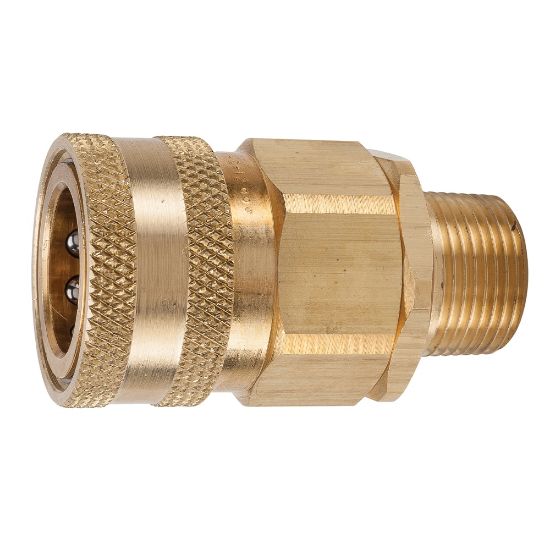

Multi-Purpose Hydraulic Quick Couplings - H Series - BVHC12-12M

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered
Partner Available:	4 in stock

SKU: BVHC12-12M

$90.37

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Poppet	Application	General Purpose
Hex Size	1.50 inch	Plating Type	n/a
Body Material	BRASS	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Connection Type	Male NPT
Body Size (inch)	3/4	Valve Type	Poppet
Maximum Operating Pressure	2000
