*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Sorry - this product is no longer available

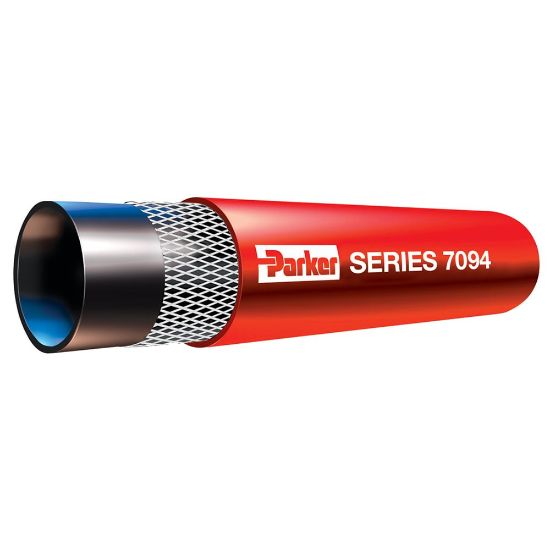

MPT® II NONCONDUCTIVE MULTIPURPOSE OIL RESISTANT HOSE - 7094-50250

MPT II Nonconductive Multipurpose Oil Resistant Hose is designed for transfer of air, mild chemicals, oil and water in applications to 212°F and 300 psi

Availability:	Backordered
Partner Available:	2135 in stock

SKU: 7094-50250

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Inside Diameter	12.7 mm
Maximum Operating Pressure	250 psi	Hose Inner Tube Material	Nitrile
Application	Non-conductive	Minimum Bend Radius	5 inch
Hose Reinforcement Material	Mutiple Plies of Textile	Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.
Cover Material	Chloroprene Rubber (CR)	Nominal Hose Inside Diameter	15 mm
Outside Diameter	21.4 mm	Maximum Operating Temperature	212 °F (Other Media)
Specifications Met	N/A	Size	-8
Minimum Operating Temperature	-29 °C	Weight	0.22 lb/ft
Color	RED	Packaging	Reels
Maximum Working Pressure (psi)	250	Hose I.D. (inch)	1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment
