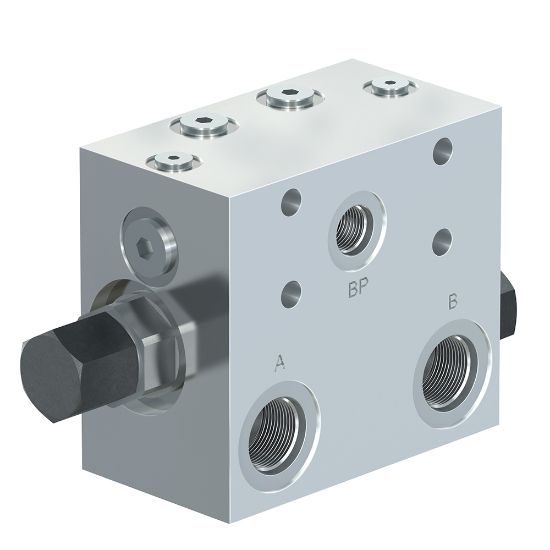

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Motor Control Valves - MMB-015-AJMH-53B

Name: Motor Control Valves - MMB-015-AJMH-53B
SKU: MMB-015-AJMH-53B
Availability: OutOfStock

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU: MMB-015-AJMH-53B

Qty:

Products specifications

Attribute name	Attribute value
Brake Release Pressure	350 psi	Maximum Inlet Pressure Rating	210 bar
Brake Release Port Size	SAE-6	Holding Pressure	3000 psi
Division	Hydraulic Valve Systems Division	Configuration	Motor Control on A port
Division	Hydraulic Systems Division	Seal Material	Fluorocarbon
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.68 kg
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	Single Motor Control	Operating Temperature	-15 to +400 °F
Operation Type	Automatic	Leak Rate	5 @ 80% Holding Pressure drops/min
Mounting Type	Manifold Mount	Pilot Pressure Ratio	10:1
Flow Rate	15 Gal/min	Actuation Type	Pressure Sensing
Maximum Operating Temperature	+400 °F	Vented	No
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Pressure	3000 psi
Valve Material	All parts steel. All operating parts hardened steel	Port Size	SAE-10
Minimum Operating Temperature	-26 °C	Minimum Pilot Pressure	300 psi
Body Material	Aluminum
Pilot Pressure Ratio	10:1	Brake Release Pressure	350 PSI, 24 BAR
Configuration	Motor Control on A port	Flow Rate	15 GAL/MIN, 56.25 L/MIN
Vented	No

Product resources

Literature and Reference Materials
