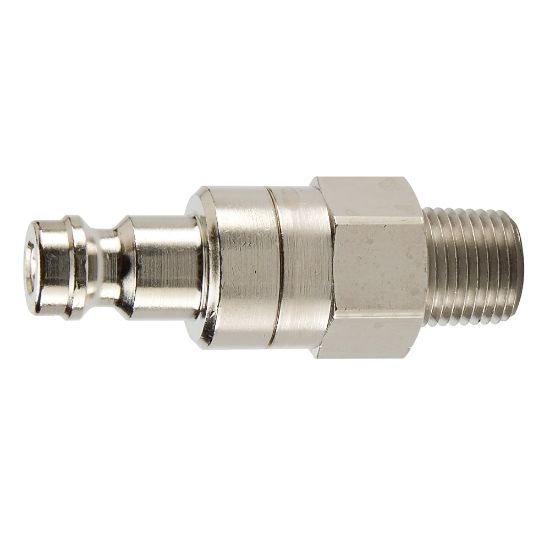

Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series - DM-122-4MP

Parker's double shut off, miniature quick couplers and nipples are corrosion resistant for applications where small, low pressure fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	2 in stock

SKU: DM-122-4MP

$26.37

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Division	Quick Coupling Division
Seal Material	Fluorocarbon	Valve Type	Poppet
Plating Type	Nickel Plated	Product Type	Push to Connect
Flow Rate	0.8 Gal/min	Application	Fluid or gas, low pressure
Maximum Operating Pressure	250.0 psi	Maximum Operating Temperature	400.0 °F
Minimum Operating Temperature	-15.0 °F	Hex Size	0.55 inch
Coupling Half	Male Nipple	Connection Thread Size	1/4 - 18
Connection Type	Male UNF	Body Size	1/8
