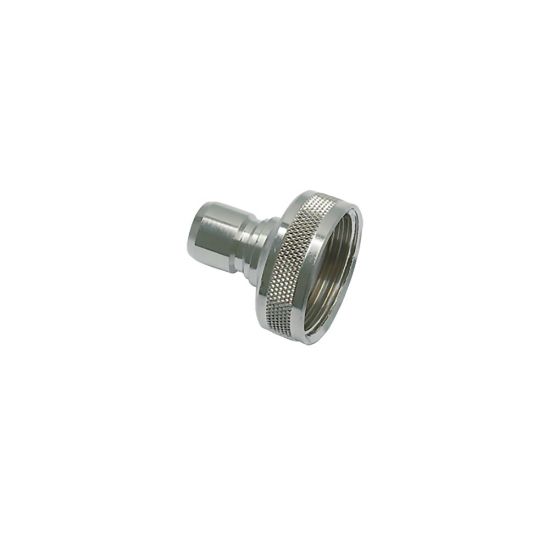

Metal Quick-Acting Couplers - 2296 12 21

Name: Metal Quick-Acting Couplers - 2296 12 21
SKU: 2296 12 21
Availability: OutOfStock

Parker Legris offers a range of metal couplers compatible with a large selection of fluids.
Simple to install, with or without shut-off valves, these couplers offer a high flow rate capability.

Availability:

Backordered

SKU: 2296 12 21

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.031 kg	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Media	Compressed air, water
Maximum Operating Pressure	20 barg	Application	Workshops, Flushing, Spraying, Packaging, Factory Automation, Filling Systems, Cleaning
Handle Type	na
O-Ring Material	na	Connection 1 Thread Size (metric)	G1/2
Product Type	Metal Quick Acting Coupler	Body Material	NICKEL PLATED BRASS
Color	na	Gripping Ring	na
Diameter Nominal (DN)	12	Connection 2 Tube O.D. (mm)	na
Connection 3 Tube O.D. (mm)	na	Connection 1 Thread Style	Female BSPP Hex Head
