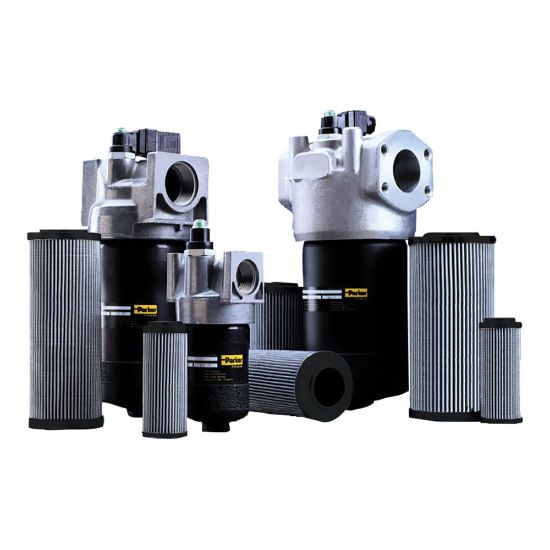

Medium Pressure Inline Filters CN Series - 15CN110QEVM2GS164

Name: Medium Pressure Inline Filters CN Series - 15CN110QEVM2GS164
SKU: 15CN110QEVM2GS164
Availability: OutOfStock

The CN Series is a compact, cost effective, medium pressure filter designed with coreless filtration technology. CN Series bowl features a permanently fixed core designed to reduce solid waste and minimize disposal costs with every element change out.

Availability:

Backordered

SKU: 15CN110QEVM2GS164

Qty:

Products specifications

Attribute name	Attribute value
Housing Material	Aluminum	Product Type	Hydraulic Filter
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Product Style	Hydraulic Filter	Mounting Style	Inline
Maximum Operating Temperature	225.0 °F	Pressure Rating	69 bar
Weight	2.5 lbs (1.13 kg)	Port Type	SAE-16 straight threads
Compatible Element	936700Q
Specifications Met	N/A	Seal Material	Fluorocarbon
Filter Element Type	10Q Microglass	Flow Rate	20 gpm (75.7 lpm)
Options	Drain port	Indicator Type	Visual automatic reset
Port Connection Type	SAE-16 straight threads	Indicator Pressure Setting	25 psi (1.7 bar)
Bypass Valve Pressure Rating	25 psi (1.7 bar)
