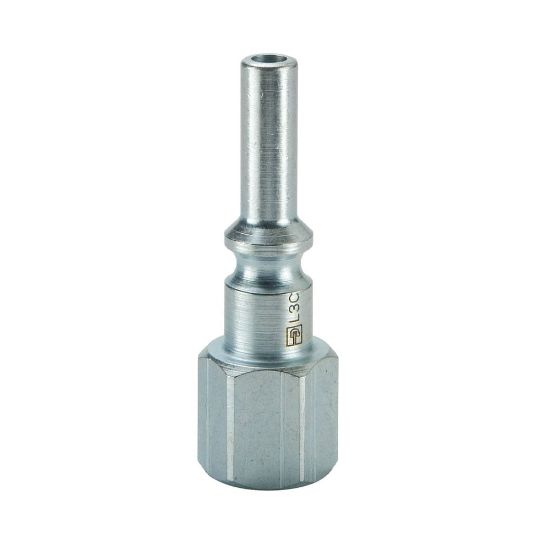

Lincoln Long Stem Interchange, Air Hose and Tool Quick Connect Couplings, - 70 Series - L3C

Parker's general purpose, Lincoln Long Stem Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	5 in stock
Partner Available:	120 in stock

SKU: L3C

$7.53

Qty:

Products specifications

Attribute name	Attribute value
Connection Thread Size	1/4 - 18 inch	Dimensional Weight	0.01335431654676259 lb
Hex Size	0.56 inch	Division	Quick Coupling Division
Body Size	1/4 inch	Maximum Operating Pressure	300 psi
Vacuum Pressure Rating	No	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Application	Compressed Air
Body Material	Steel	Interchange Type	Lincoln Interchange
Minimum Operating Temperature	-40 °F	Valve Type	Unvalved
Connection Type	Female NPTF	Coupling Half	Male Nipple

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
