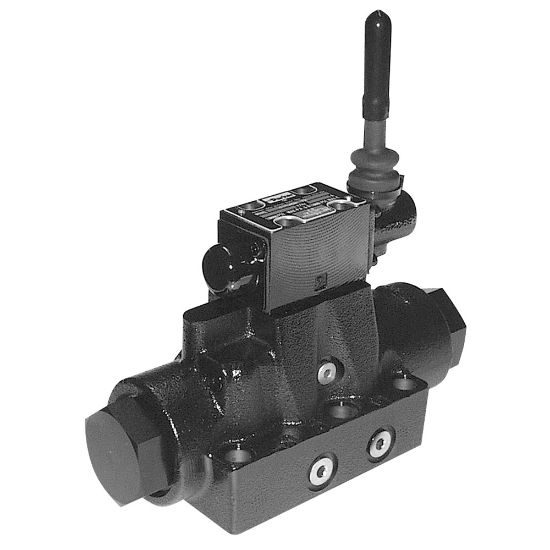

Lever Operated Directional Control Valve - D61VL Series - D61VL004C4V

Name: Lever Operated Directional Control Valve - D61VL Series - D61VL004C4V
SKU: D61VL004C4V
Availability: OutOfStock

Parker’s D61VL directional control valves are 5-chamber, lever operated valves.

Availability:

Backordered

SKU: D61VL004C4V

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Minimum Operating Temperature	-4 °F	Maximum Operating Pressure	3000 psi
Seal Material	Fluorocarbon	Maximum Operating Temperature	140 °F
Division	Hydraulic Valve Systems Division	Body Material	Gray Iron
Maximum Flow Rate	100 Gal/min	Options	n/a
Size	CETOP 8	Valve Type	Lever Operated Directional Control Valve
Spool Position	3-Position	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Spool Code	P Port Blocked	Weight	12.1 kg
Mounting Type	Subplate	Maximum Operating Pressure	3000 PSI
Size	NFPA D08, CETOP 8, DIN NG25	Maximum Flow Rate	Up to 100 GPM depending on spool

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D61VL Series
