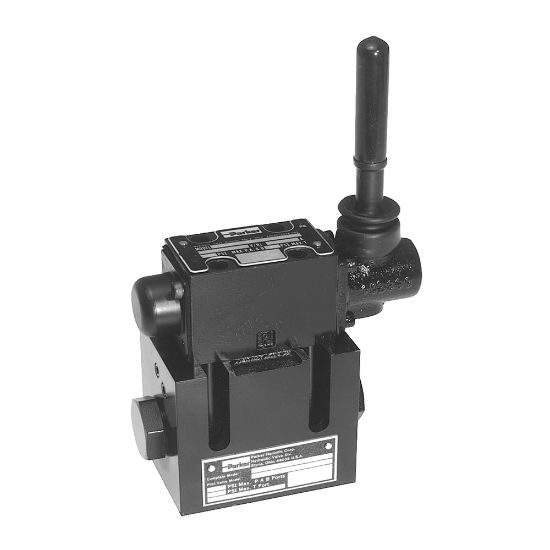

Lever Operated Directional Control Valve - D31DL, D31VL Series - D31DL001C4N

Name: Lever Operated Directional Control Valve - D31DL, D31VL Series - D31DL001C4N
SKU: D31DL001C4N
Availability: OutOfStock

Parker’s D31*L directional control valves are 5-chamber, pilot operated, lever controlled valves.

Availability:

Backordered

SKU: D31DL001C4N

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	345 bar	Mounting Type	Subplate
Actuation Type	Hydraulic Pressure	Minimum Operating Temperature	-4 °F
Seal Material	Nitrile	Maximum Operating Temperature	140 °F
Division	Hydraulic Valve Systems Division	Weight	12 lb
Body Material	Gray Iron	Maximum Flow Rate	40 Gal/min
Options	n/a	Spool Code	4-Way
Valve Type	Lever Operated Directional Control Valve	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Spool Position	Double Operator
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Size	NFPA D05HE, CETOP 5H (ISO)	Maximum Flow Rate	Up to 40 GPM depending on spool
