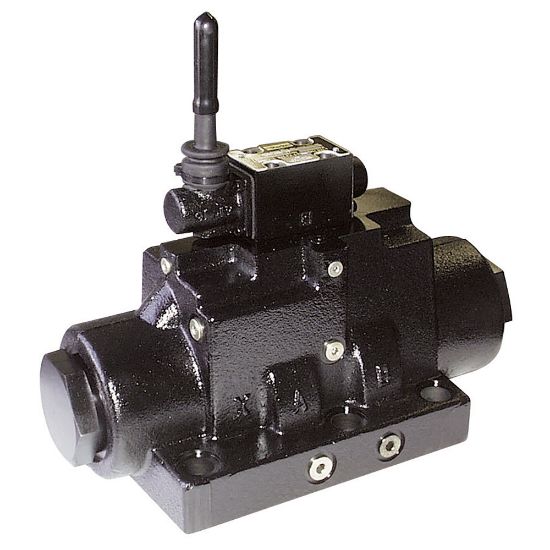

Lever Operated Directional Control Valve - D101VL Series - D101VL001B4N

Name: Lever Operated Directional Control Valve - D101VL Series - D101VL001B4N
SKU: D101VL001B4N
Availability: OutOfStock

Parker’s D101VL directional control valves are 5-chamber, lever operated valves.

Availability:

Backordered

SKU: D101VL001B4N

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	Subplate	Seal Material	Nitrile
Maximum Operating Pressure	3000 psi	Division	Hydraulic Valve Systems Division
Body Material	Gray Iron	Options	n/a
Maximum Flow Rate	250 Gal/min	Actuation Type	Lever
Size	NG32	Spool Code	4-Way
Valve Type	Lever Operated Directional Control Valve	Spool Position	Spring Offset to Center
Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain	Minimum Operating Temperature	-4
Maximum Operating Temperature	140	Weight	77.2
Mounting Type	Subplate	Maximum Operating Pressure	3000 PSI
Maximum Flow Rate	250 GPM	Size	NFPA D08, CETOP 8, NG32
