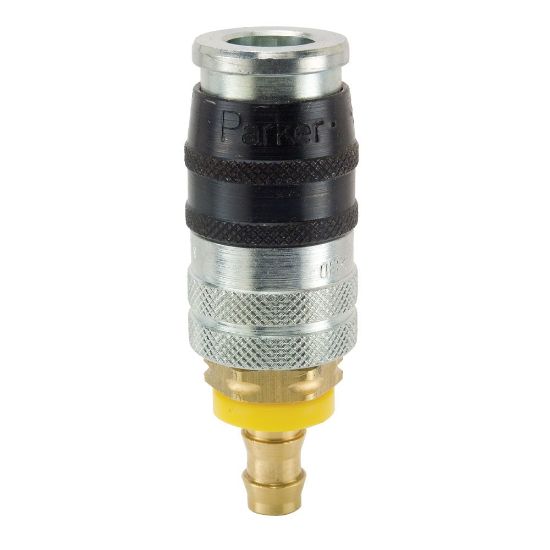

ISO 4414 Industrial Interchange, Safety Quick Connect Air Couplers - E-z-mate Series - EZ-371-6PL

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	10 in stock
Partner Available:	87 in stock

SKU: EZ-371-6PL

$75.30

Products specifications

Attribute name	Attribute value
Lock Type	Locking balls	Minimum Operating Temperature	-40 °F
Valve Type	Tubular	Media	Compressed Air
Body Material	Steel	Application	Air
Plating Type	Zinc with clear trivalent chromate on steel body	Specifications Met	ISO 4414 controlled pressure release
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	300 psi
Seal Material	Nitrile	Sleeve Type	Push to Connect
Coupling Half	Coupler	Division	Quick Coupling Division
Special Option	Exhaust - venting	Dimensional Weight	0.12464028776978417 lb
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Body Size (inch)	3/8	Connection Hose I.D. (inch)	3/8
Thread Style	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
