*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

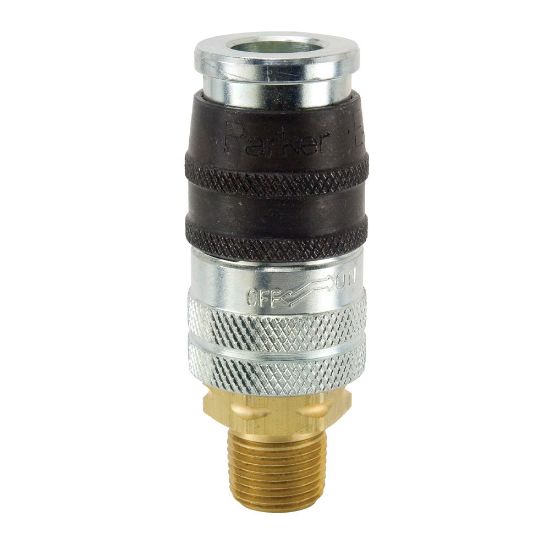

ISO 4414 Industrial Interchange, Safety Quick Connect Air Couplers - E-z-mate Series - EZ-371-6MP

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	5 in stock
Partner Available:	58 in stock

SKU: EZ-371-6MP

$73.12

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	300 psi	Body Material	Steel
Division	Quick Coupling Division	Special Option	Exhaust - venting
Dimensional Weight	0.12464028776978417 lb	Seal Material	Nitrile
Minimum Operating Temperature	-40 °F	Media	Compressed Air
Lock Type	Locking balls	Coupling Half	Coupler
Valve Type	Tubular	Sleeve Type	Push to Connect
Specifications Met	ISO 4414 controlled pressure release	Application	Air
Plating Type	Zinc with clear trivalent chromate on steel body	Maximum Operating Temperature	250 °F
Connection Type	NPTF	Connection Hose I.D. (inch)	na
Thread Style	Male	Connection Thread Size (inch)	3/8 - 18
Body Size (inch)	3/8

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
