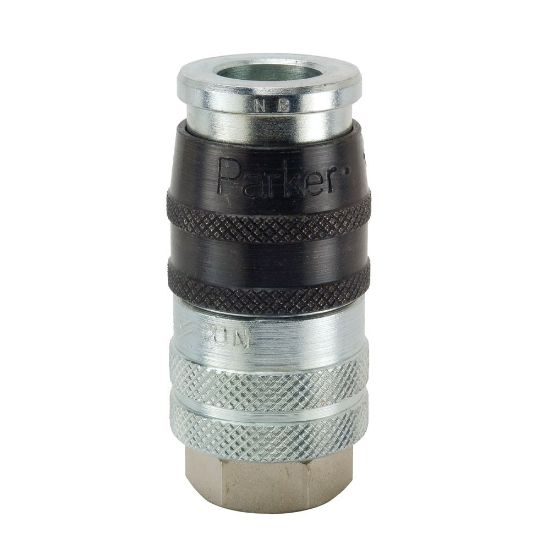

ISO 4414 Industrial Interchange, Safety Quick Connect Air Couplers - E-z-mate Series - EZ-371-6FP

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	8 in stock
Partner Available:	161 in stock

SKU: EZ-371-6FP

$62.00

Products specifications

Attribute name	Attribute value
Body Material	Steel	Application	Air
Maximum Operating Temperature	250 °F	Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Maximum Operating Pressure	300 psi	Seal Material	Nitrile
Valve Type	Tubular	Coupling Half	Coupler
Division	Quick Coupling Division	Special Option	Exhaust - venting
Sleeve Type	Push to Connect	Lock Type	Locking balls
Plating Type	Zinc with clear trivalent chromate on steel body	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.05341726618705036 lb	Media	Compressed Air
Thread Style	Female	Connection Type	NPTF
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
Connection Hose I.D. (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
