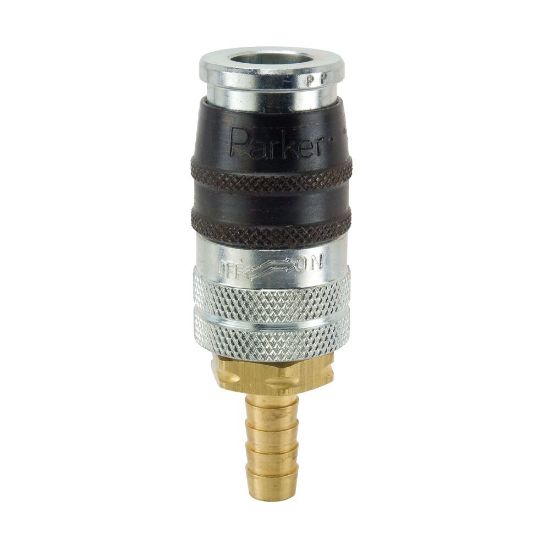

ISO 4414 Industrial Interchange, Safety Quick Connect Air Couplers - E-z-mate Series - EZ-251-6HB

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Backordered
Partner Available:	Backordered

SKU: EZ-251-6HB

$76.10

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Dimensional Weight	0.062320143884892085 lb	Valve Type	Tubular
Coupling Half	Coupler	Sleeve Type	Push to Connect
Division	Quick Coupling Division	Special Option	Exhaust - venting
Plating Type	Zinc with clear trivalent chromate on steel body	Lock Type	Locking balls
Minimum Operating Temperature	-40 °F	Media	Compressed Air
Body Material	Steel	Application	Air
Specifications Met	ISO 4414 controlled pressure release	Maximum Operating Temperature	250 °F
Connection Type	Hose Barb	Body Size (inch)	1/4
Thread Style	na	Connection Hose I.D. (inch)	3/8
Connection Thread Size (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
