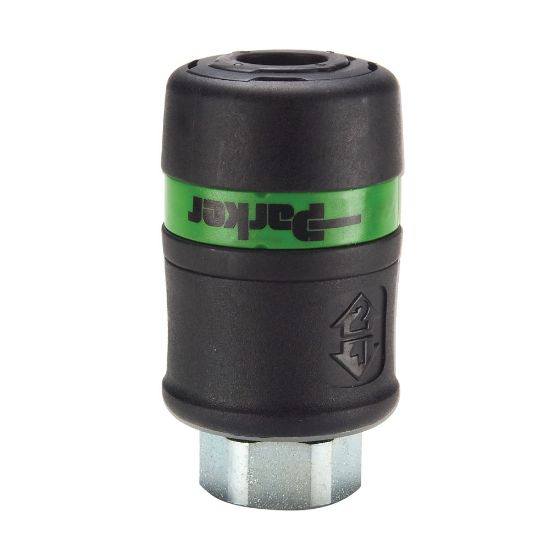

ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series - PES-251-6FP

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Backordered
Partner Available:	33 in stock

SKU: PES-251-6FP

$57.36

Products specifications

Attribute name	Attribute value
Sleeve Type	Push-to-Connect	Minimum Operating Temperature	0 °F
Maximum Operating Temperature	160 °F	Specifications Met	ISO 4414 controlled pressure release
Application	Air	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Coupling Half	Coupler
Division	Quick Coupling Division	Valve Type	Tubular
Body Material	Polyamide	Dimensional Weight	0.07194244604316546 lb
Lock Type	Polyacetate Locking Fingers	Special Option	Exhaust - Venting
Media	Compressed Air	Plating Type	Galvanized Steel Port Ends
Thread Style	Female	Interface Option	Connects with RF style nipples
Connection Type	Female, NPTF	Body Size	1/4"
Connection Thread Size	3/8"-18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
