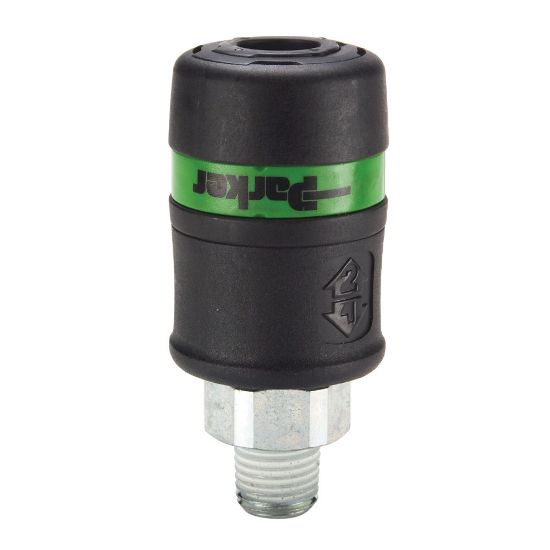

ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series - PES-251-4MP

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Backordered
Partner Available:	2 in stock

SKU: PES-251-4MP

$62.33

Products specifications

Attribute name	Attribute value
Lock Type	Polyacetate Locking Fingers	Coupling Half	Coupler
Division	Quick Coupling Division	Body Material	Polyamide
Seal Material	Nitrile	Plating Type	Galvanized Steel Port Ends
Special Option	Exhaust - Venting	Valve Type	Tubular
Media	Compressed Air	Application	Air
Specifications Met	ISO 4414 controlled pressure release	Minimum Operating Temperature	0 °F
Dimensional Weight	0.07913669064748201 lb	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	160 °F	Sleeve Type	Push-to-Connect
Body Size	1/4"	Thread Style	Male
Connection Thread Size	1/4"-18	Connection Type	Male, NPTF
Interface Option	Connects with RF style nipples
