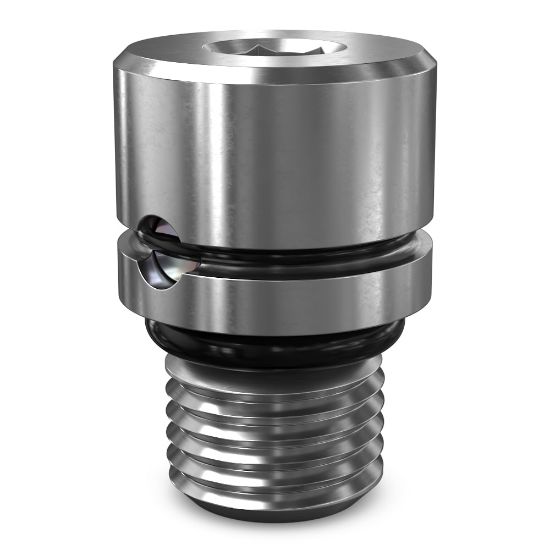

Insert Check Valves - CVH021

Name: Insert Check Valves - CVH021
SKU: CVH021
Availability: OutOfStock

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:

Backordered

SKU: CVH021

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Connection Size	n/a
Connection Type	n/a	Maximum Operating Temperature	400 °F
Weight	0.04 lb	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-15 °F	Operating Temperature	-26 to 204 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel
Filter Efficiency Rating	SAE Class 4	Actuation Type	Pressure Sensing
Leak Rate	n/a	Operation Type	Automatic
Maximum Inlet Pressure Rating	350 bar	Maximum Flow Rate	1 Gal/min
Function	Sense Check	Flow Rate	3.8 L/min
Cavity Size	n/a	Configuration	Insert
Mounting Type	Inside Manifolds	Flow Direction	2-1 Checked
Cracking Pressure	0 psi
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	1 GAL/MIN, 3.8 L/MIN	Cracking Pressure	0 PSI, 0 BAR
