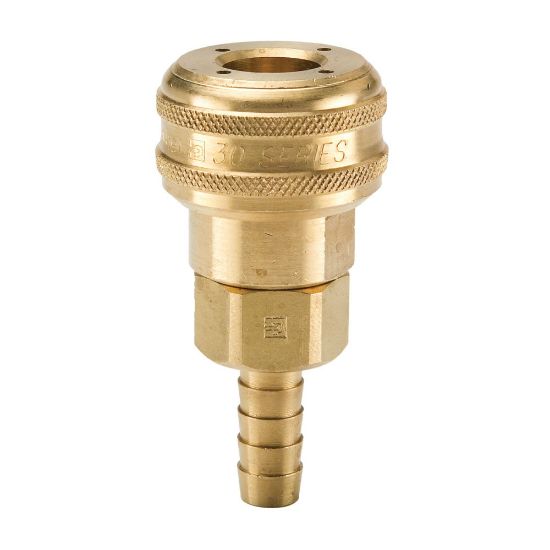

Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series - B34-6B

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	27 in stock

SKU: B34-6B

$58.41

Products specifications

Attribute name	Attribute value
Sleeve Type	Push to Connect	Dimensional Weight	0.062320143884892085 lb
Division	Quick Coupling Division	Coupling Half	Coupler
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Application	Air	Lock Type	Pawls
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Media	Low pressure fluids and compressed air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Valve Type	Tubular
Thread Style	na	Connection Type	Hose Barb
Body Size (inch)	3/8	Connection Thread Size (inch)	na
Body Material	BRASS	Connection Hose I.D. (inch)	1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
