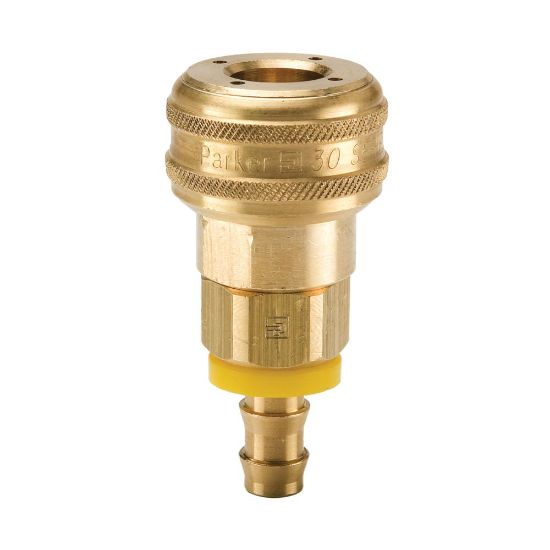

Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series - B34-5BP

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	29 in stock

SKU: B34-5BP

$46.70

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Lock Type	Pawls	Application	Air
Maximum Operating Temperature	250 °F	Media	Low pressure fluids and compressed air
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Minimum Operating Temperature	-40 °F
Sleeve Type	Push to Connect	Valve Type	Tubular
Coupling Half	Coupler	Division	Quick Coupling Division
Dimensional Weight	0.062320143884892085 lb
Connection Hose I.D. (inch)	3/8	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Body Material	BRASS	Thread Style	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
