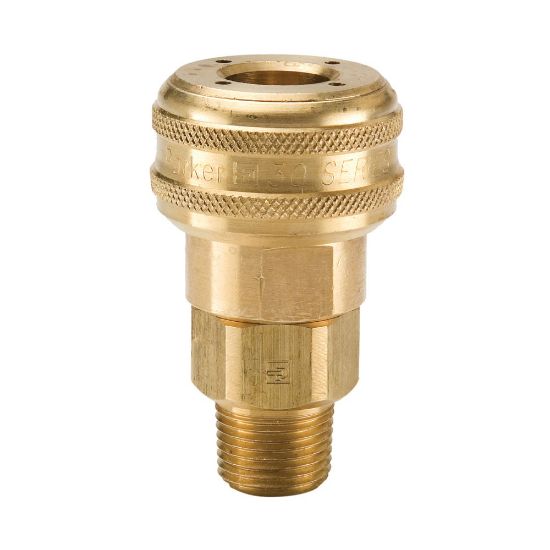

Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series - B32A

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	80 in stock

SKU: B32A

$34.41

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.062320143884892085 lb	Valve Type	Tubular
Coupling Half	Coupler	Sleeve Type	Push to Connect
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Lock Type	Pawls	Application	Air
Media	Low pressure fluids and compressed air	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Connection Thread Size (inch)	1/8 - 27	Body Size (inch)	1/4
Connection Type	NPTF	Body Material	BRASS
Thread Style	Male	Connection Hose I.D. (inch)	na
