*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

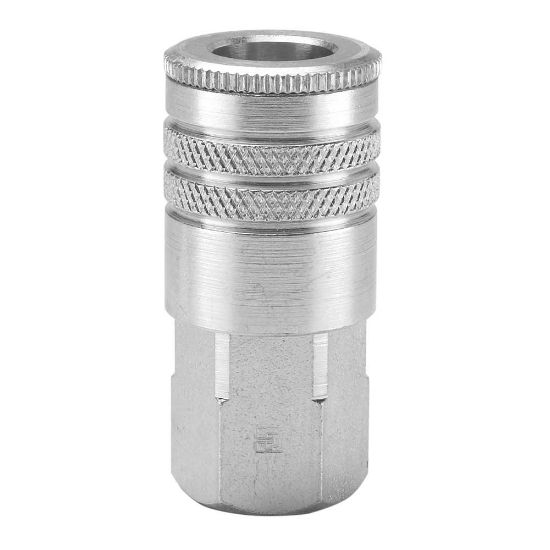

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - S23

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	9 in stock
Partner Available:	65 in stock

SKU: S23

$98.35

Qty:

Products specifications

Attribute name	Attribute value
Valve Type	Tubular	Coupling Half	Coupler
Division	Quick Coupling Division	Sleeve Type	Manual
Maximum Operating Pressure	300 psi	Seal Material	Nitrile
Application	Air	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Plating Type	na
Dimensional Weight	0.02670863309352518 lb	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Body Size (inch)	1/4	Body Material	Stainless steel (303)
Thread Style	Female	Connection Type	NPTF
Connection Thread Size (inch)	1/4 - 18	Connection Hose I.D. (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
