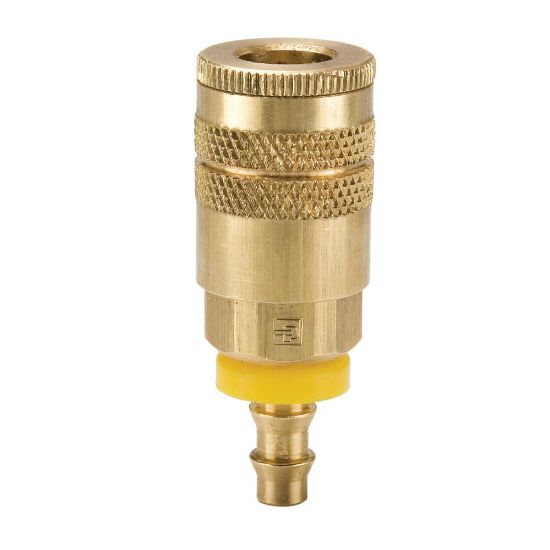

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B20-5BP

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	104 in stock
Partner Available:	1788 in stock

SKU: B20-5BP

$21.08

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Application	Air
Minimum Operating Temperature	-40 °F	Lock Type	Locking balls
Media	Low pressure fluids and compressed air	Plating Type	na
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Division	Quick Coupling Division
Coupling Half	Coupler	Dimensional Weight	0.026658673061550762 lb
Valve Type	Tubular	Sleeve Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Connection Hose I.D. (inch)	3/8	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Body Material	BRASS
Thread Style	na	Body Size (inch)	1/4
