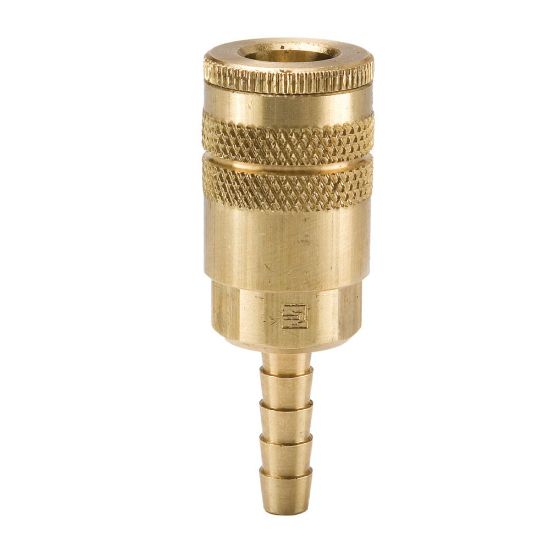

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B20-5B

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	5 in stock
Partner Available:	501 in stock

SKU: B20-5B

$20.55

Products specifications

Attribute name	Attribute value
Coupling Half	Coupler	Dimensional Weight	0.026658673061550762 lb
Division	Quick Coupling Division	Sleeve Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Application	Air	Maximum Operating Temperature	250 °F
Media	Low pressure fluids and compressed air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Minimum Operating Temperature	-40 °F	Lock Type	Locking balls
Plating Type	na	Valve Type	Tubular
Thread Style	na	Body Size (inch)	1/4
Connection Type	Hose Barb	Connection Hose I.D. (inch)	3/8
Connection Thread Size (inch)	na	Body Material	BRASS

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
