*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

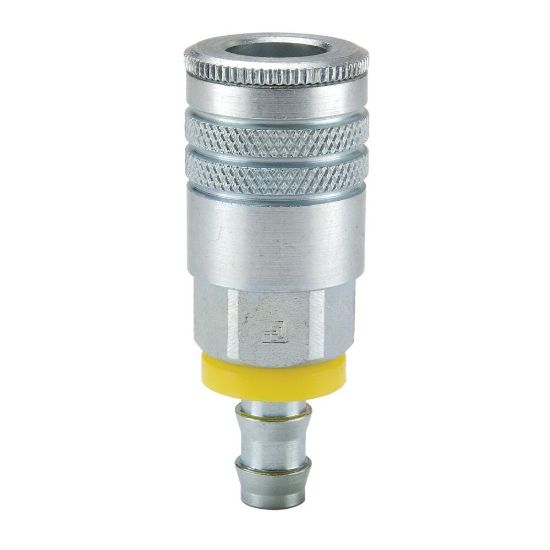

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - 24-5BP

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	31 in stock
Partner Available:	395 in stock

SKU: 24-5BP

$33.56

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Coupling Half	Coupler
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Application	Air
Valve Type	Tubular	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Lock Type	Locking balls	Sleeve Type	Manual
Media	Low pressure fluids and compressed air	Dimensional Weight	0.07997601918465227 lb
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Thread Style	na	Connection Hose I.D. (inch)	3/8

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
