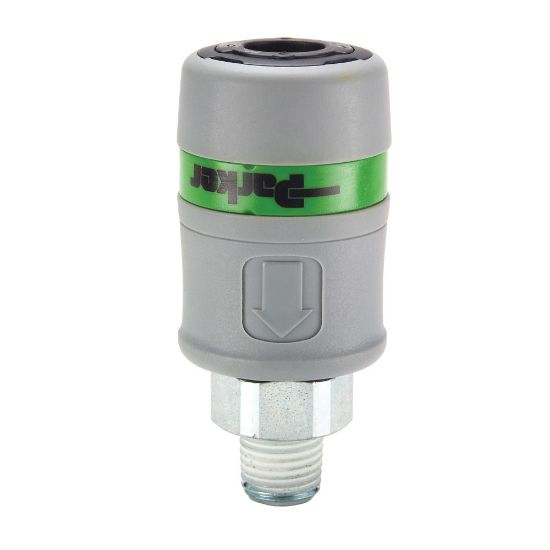

Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series - PER-251-4MP

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: PER-251-4MP

$43.66

Products specifications

Attribute name	Attribute value
Plating Type	Galvanized Steel Port Ends	Media	Compressed Air
Valve Type	Tubular	Specifications Met	Connects with RF style nipples
Application	Air	Minimum Operating Temperature	0 °F
Maximum Operating Pressure	300 psi	Seal Material	Nitrile
Maximum Operating Temperature	160 °F	Sleeve Type	Push-to-Connect
Coupling Half	Coupler	Division	Quick Coupling Division
Lock Type	Polyacetate Locking Fingers	Body Material	Polyamide
Thread Style	Male	Connection Thread Size	1/4"-18
Connection Type	Male, NPTF	Interface Option	Connects with RF style nipples
Body Size	1/4"

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
