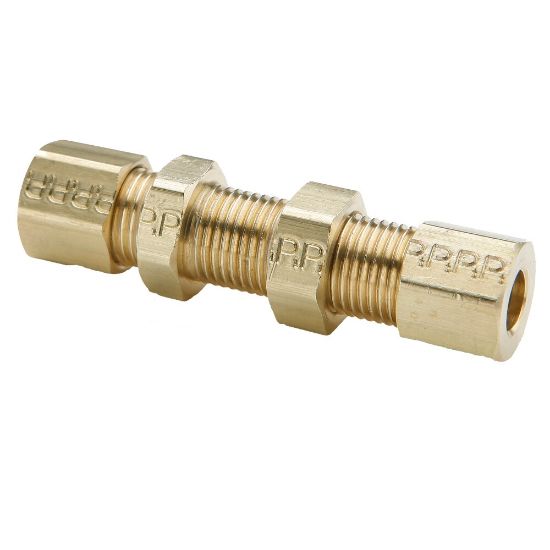

Inch Brass Compression Fittings - 62CBH-6

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Backordered
Partner Available:	5 in stock

SKU: 62CBH-6

$26.85

Products specifications

Attribute name	Attribute value
Weight	na	Maximum Operating Pressure	200 psi
Quantity per Box	na	Sleeve Material	Brass, Acetal
Media	Water, air, inert and non-combustible gasses	Nut Material	BRASS
Minimum Operating Temperature	-54 °C	Specifications Met	SAE J-512
Tube Material	Copper, Aluminum, Thermoplastic	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Connection 2 Size	3/8"	Body Material	Brass, Forged
Configuration	Tube to Tube	Connection 2 Type	Compression
Connection 1 Size	3/8"	Connection 1 Type	Compression
Product Style	Bulkhead
