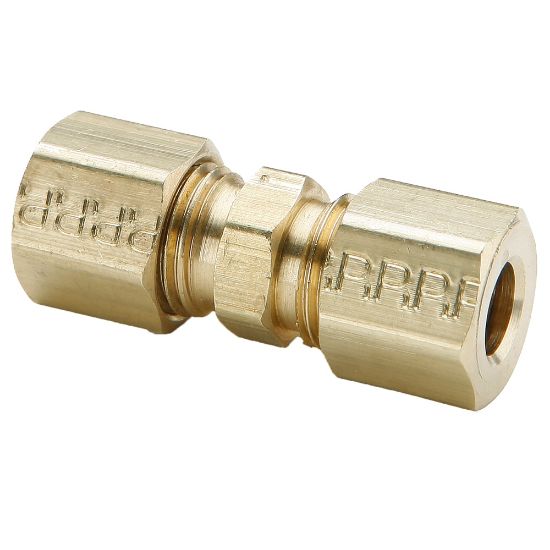

Inch Brass Compression Fittings - 62C-4

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	23 in stock
Partner Available:	629 in stock

SKU: 62C-4

$4.59

Products specifications

Attribute name	Attribute value
Media	Water, air, inert and non-combustible gasses	Weight	na
Dimensional Weight	0.0552 lb	Nut Material	BRASS
Sleeve Material	Brass, Acetal	Maximum Operating Temperature	250 °F
Quantity per Box	na	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Minimum Operating Temperature	-65 °F	Maximum Operating Pressure	300 psi
Tube Material	Copper, Aluminum, Thermoplastic	Specifications Met	na
Division	Fluid System Connectors Division
Connection 1 Size	1/4"	Connection 2 Type	Compression
Connection 2 Size	1/4"	Configuration	Tube to Tube
Shape	Union	Body Material	Brass, Forged
Connection 1 Type	Compression
