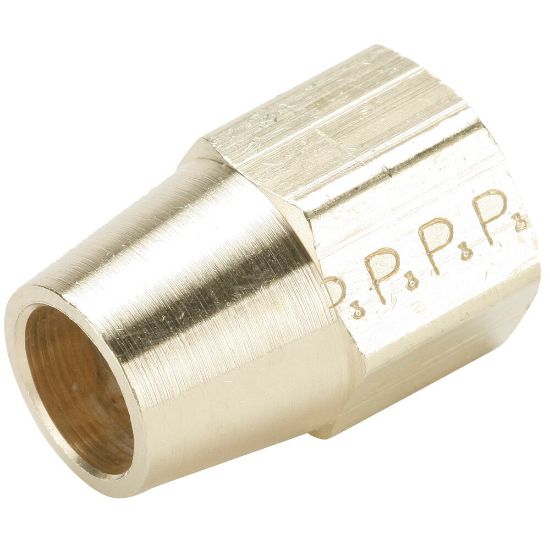

Inch Brass Compression Fittings - 61CL-4

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Backordered
Partner Available:	50 in stock

SKU: 61CL-4

$2.96

Products specifications

Attribute name	Attribute value
Weight	na	Media	Water, air, inert and non-combustible gasses
Maximum Operating Pressure	1400 psi	Maximum Operating Temperature	250 °F
Sleeve Material	Brass, Acetal	Nut Material	BRASS
Minimum Operating Temperature	-54 °C	Quantity per Box	na
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Tube Material	Copper, Aluminum, Thermoplastic
Division	Fluid System Connectors Division	Specifications Met	na
Connection 1 Size	1/4"	Product Style	Long Nut
Body Material	Brass, Forged	Connection 1 Type	Compression
