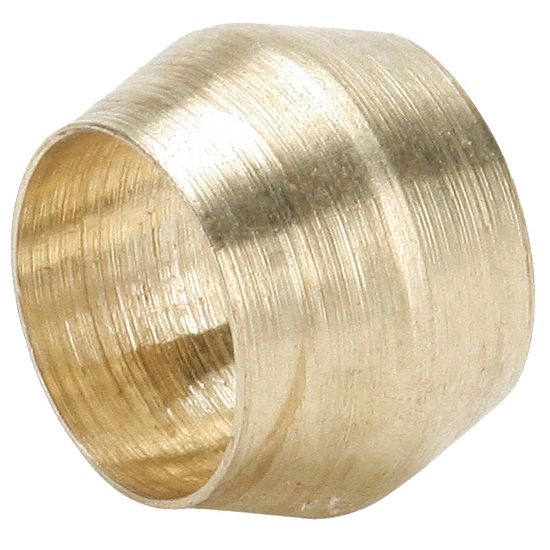

Inch Brass Compression Fittings - 60C-4

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	256 in stock
Partner Available:	5340 in stock

SKU: 60C-4

$0.48

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-54 °C	Weight	na
Media	Water, air, inert and non-combustible gasses	Maximum Operating Temperature	121 °C
Quantity per Box	na	Sleeve Material	Brass, Acetal
Nut Material	BRASS	Dimensional Weight	0.0276 lb
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Maximum Operating Pressure	300 psi
Tube Material	Copper, Aluminum, Thermoplastic	Specifications Met	na
Division	Fluid System Connectors Division
Connection 1 Size	1/4"	Body Material	Brass, Forged
Connection 1 Type	Compression	Product Style	Sleeve
