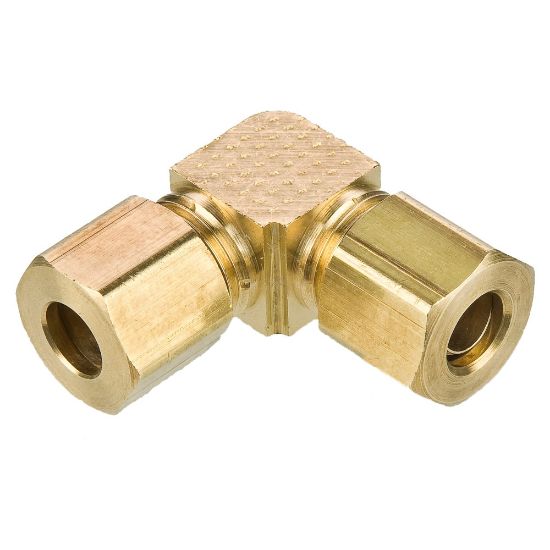

Inch Brass Compression Fittings - 265C-4

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Backordered
Partner Available:	42 in stock

SKU: 265C-4

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	1400 psi	Tube Material	Copper, Aluminum, Thermoplastic
Nut Material	BRASS	Minimum Operating Temperature	-54 °C
Media	Water, air, inert and non-combustible gasses	Sleeve Material	Brass, Acetal
Maximum Operating Temperature	250 °F	Quantity per Box	na
Weight	na	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Specifications Met	na	Division	Fluid System Connectors Division
Connection 2 Size	1/4"	Connection 2 Type	Compression
Connection 1 Size	1/4"	Configuration	Tube to Tube
Body Material	Brass, Extruded	Shape	Elbow 90°
Connection 1 Type	Compression
