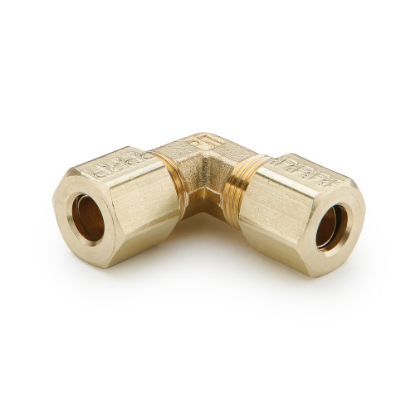

Inch Brass Compression Fittings - 264C-3

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Availability:	Backordered
Partner Available:	59 in stock

SKU: 264C-3

$14.36

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Tube Material	Copper, Aluminum, Thermoplastic
Specifications Met	SAE J-512	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Minimum Operating Temperature	-65 °F	Nut Material	BRASS
Media	Water, air, inert and non-combustible gasses	Quantity per Box	na
Sleeve Material	Brass, Acetal	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	131 bar	Weight	na
Connection 1 Size	3/16"	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 3 Type	Compression
Connection 2 Size	3/16"	Configuration	Tube to Tube
Body Material	Brass, Extruded	Shape	Tee
Connection 3 Size	3/16"
